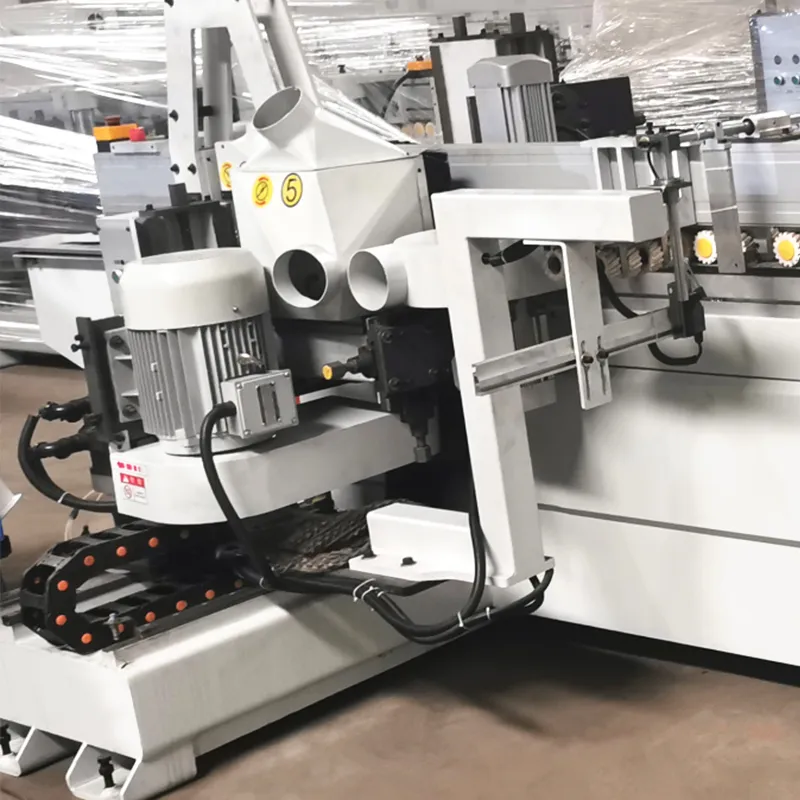

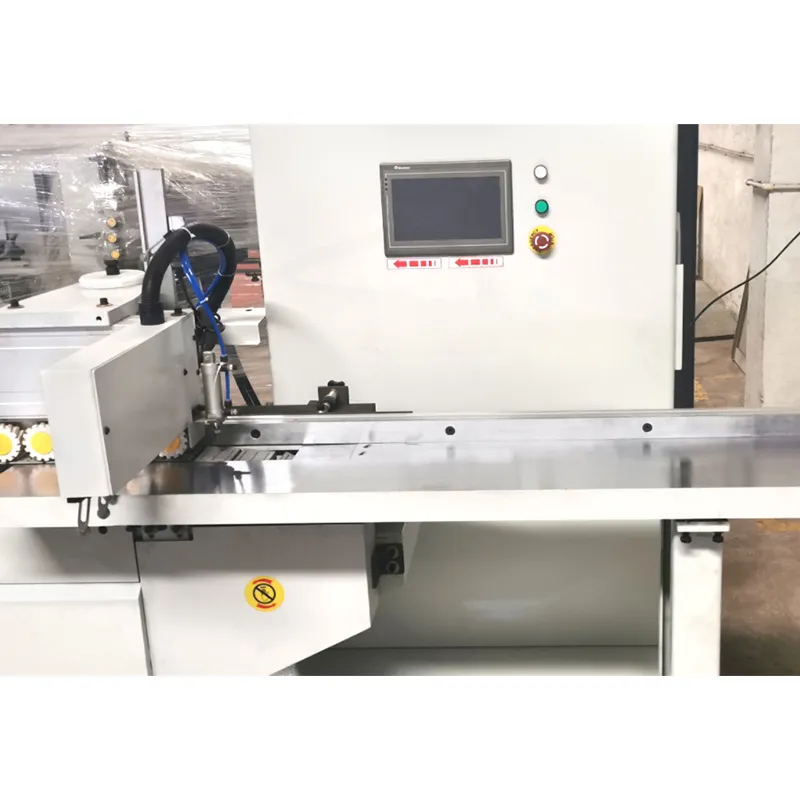

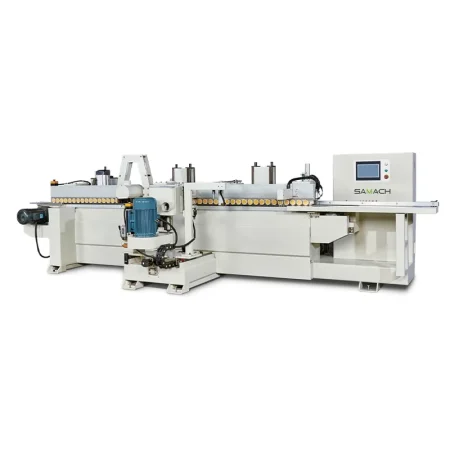

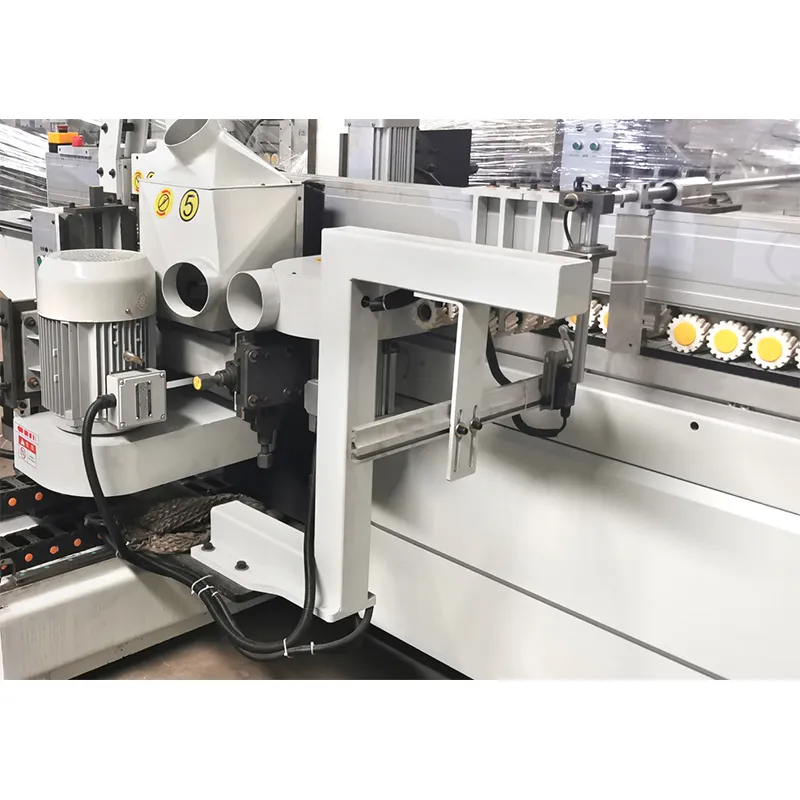

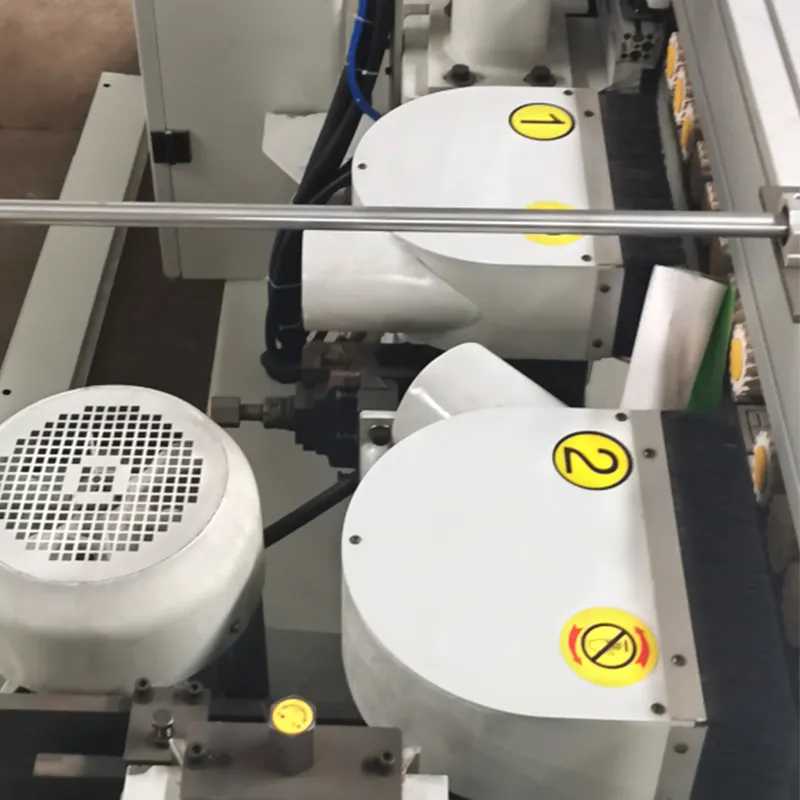

Door sill milling machine with stop-line type door sill technology
Unpainted door threshold
Packaging Type: Raw board cutting - milling - sanding - packaging
Melamine board: Cutting - Edge Banding - Milling - Air Riveting - Precision Cutting - Hinges and Keyholes
Stopper: Milling - sanding - packaging and then fixing with screws
Painted door sill:
Raw board cutting - base layer - milling - sanding
or Large slab with primer – Cutting – Primer on edges – Milling – Sanding – Nailing – Precision cutting – Hinges and keyholes – Final painting
Stopper: Milling - sanding - primer - sanding, then screwing, and finally final painting.
Equipment required for the unpainted type:
Packaging Type: Cutting saw – Door sill milling machine (with sanding and chamfering functions) – Wrapping machine (frame and spacer are wrapped separately) – Nailing machine – Door sill measuring machine – Hinges and keyhole machine
Melamine board: Cutting saw – Edge banding machine – Door sill milling machine or edge banding machine with removal system – Nailing machine – Door sill measuring machine – Hinges and keyhole machine
Equipment required for coated type:
Cutting saw – Sanding machine – Painting machine – Door sill milling machine – Nailing machine (the spacer is painted first and then nailed) – Door sill measuring machine – Hinges and keyhole machine – Finishing painting machine
Model | RDJ-H2J1K1X1 |
Workpiece width range | 100-400mm |
Minimum workpiece length | 600mm |
Workpiece thickness range | 15-100mm |
Feeding speed | 3-15m/min (Frequency) |
Feeding motor power | 2.2kw |
Scribing saw motor power | 1.5kw*2 |
Scribing saw motor rotating speed | 12000 r/min |
Fixed saw motor power | 5.5kw, motor with shaft structure |
Number of fixed saw spindles | 1 set |
Fixed saw spindle rotating speed | 4800 rpm |
Fixed width saw motor power | 5.5kw, motor with shaft structure |
Number of fixed width saw spindles | 1 set |
Fixed width saw spindle rotating speed | 4800 rpm |
Upper milling cutter motor power | 5.5kw, motor with shaft structure |
Number of upper milling cutter spindles | 1 set |
Upper milling cutter rotating speed | 8000 r/min, high speed motor |
Dimensions of milling cutter spindle | Φ35*100mm |
Lifting motor power | 0.55kw |
Saw blade size | Max. 200mm |
Suction port diameter | 120mm*4 80mm*2 |
Total power | 22.45kw |
Mechanical dimensions | 4500*1700*1550mm |
Weight | 2000kg |
