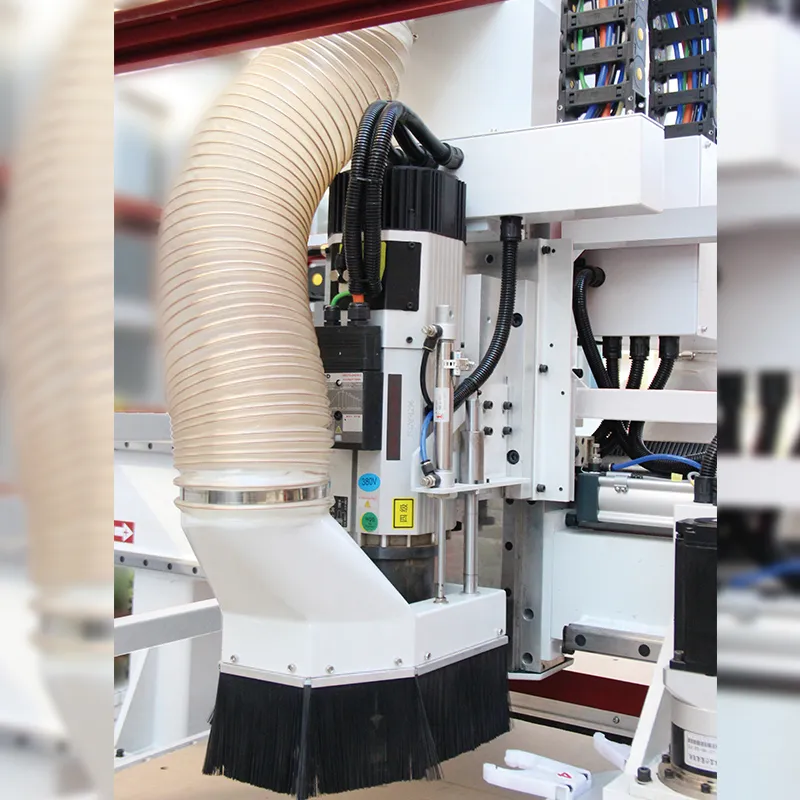

9KW بقوة HQD مغزل
1300×2800×50 :طاولة تفريغ هواء بأبعاد حركة

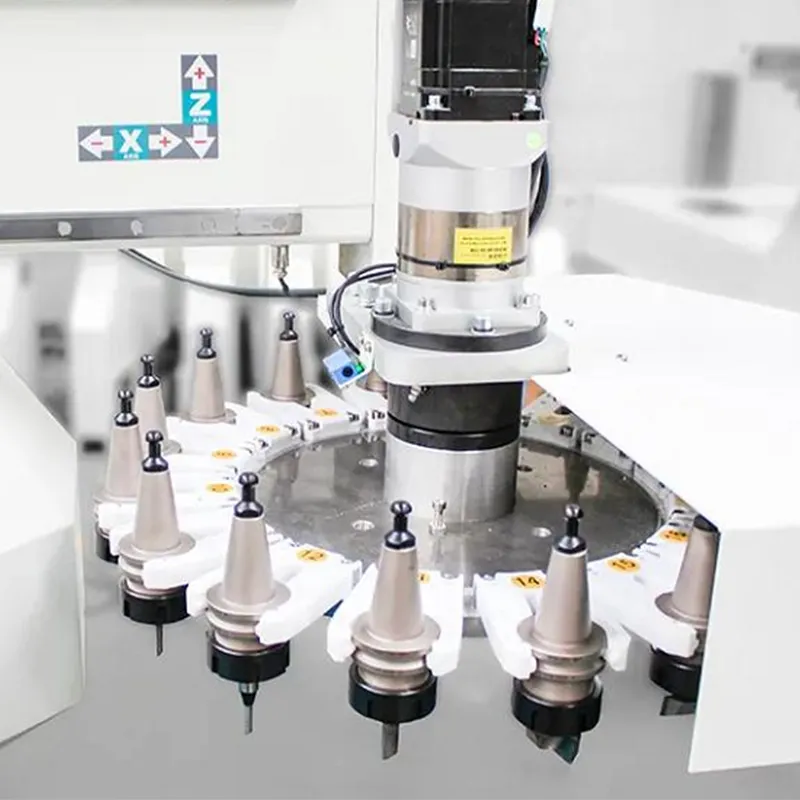

مخزن أدوات دائري8/16 أداة

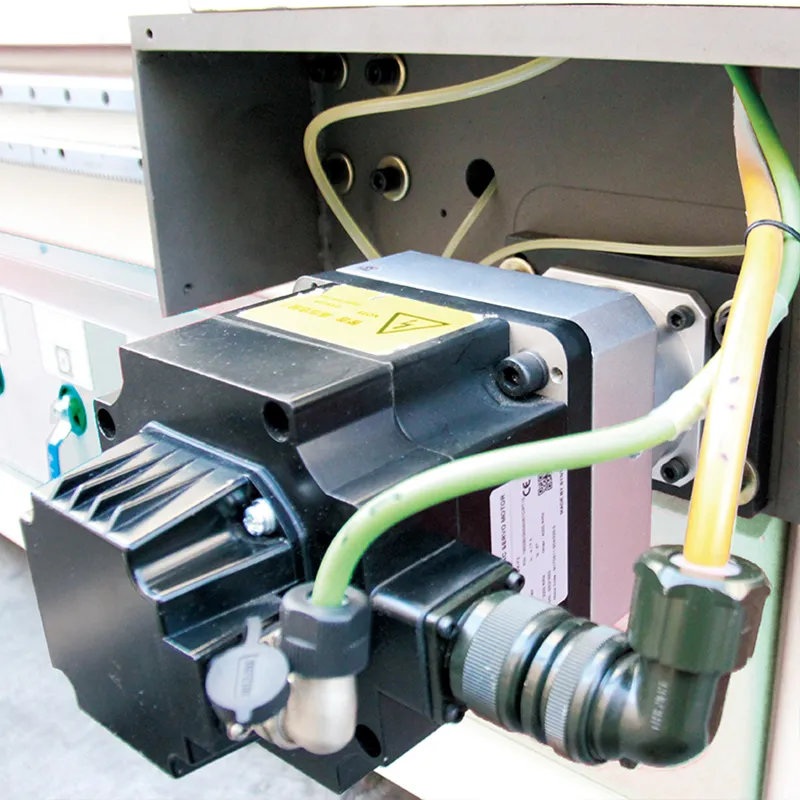

ياباني YASKAWA سيرفو وسائق

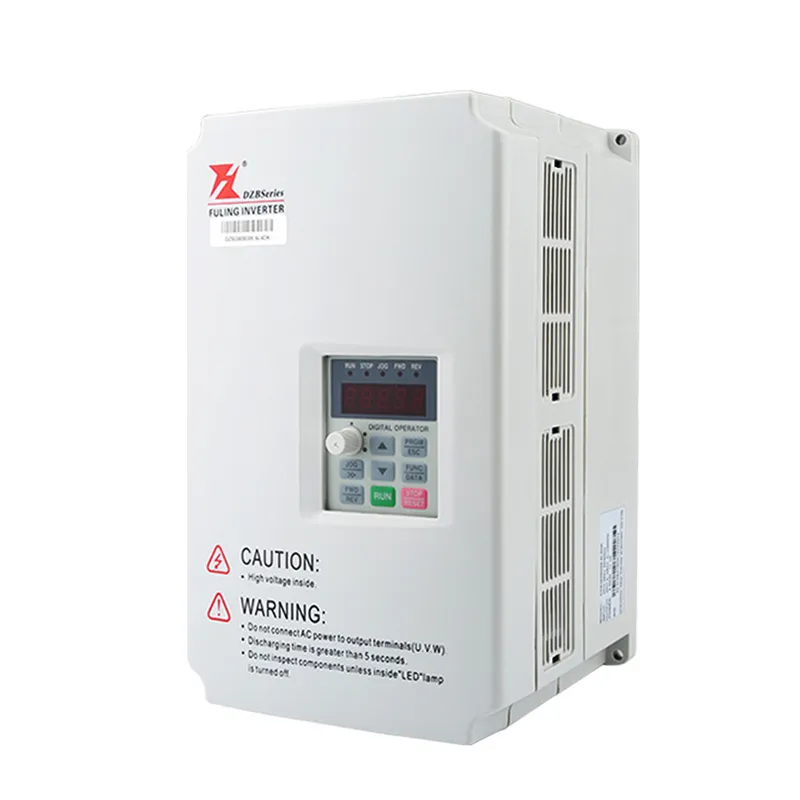

11KW بقوة FULLING عاكس

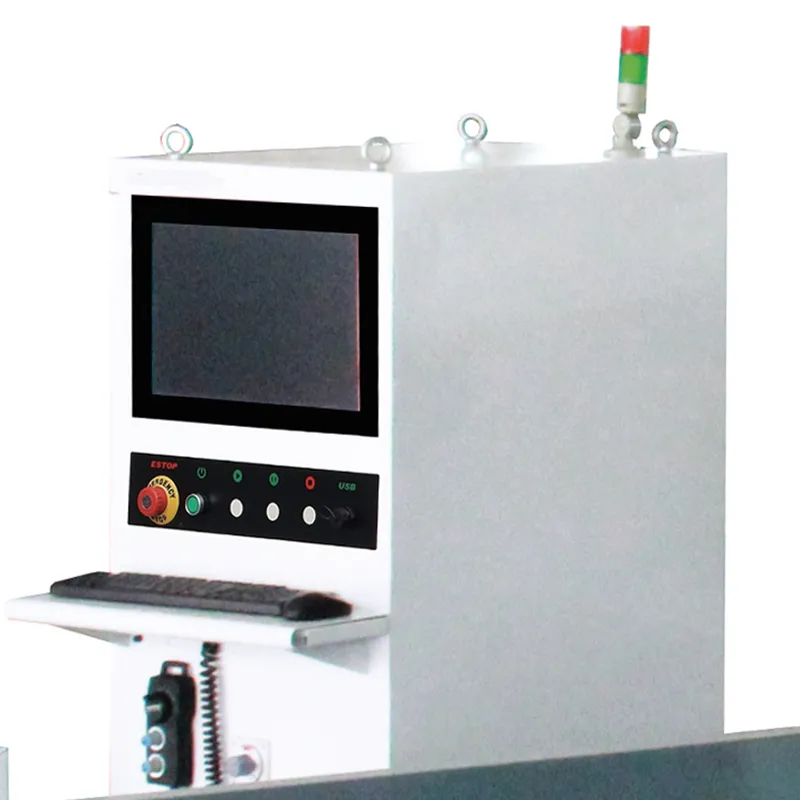

SYNTEC/NCSTUDIO نظام تحكم حاسوبي
7.5KW مضخة مياه بقوة
DXF، MPR، XML:يدعم تنسيقات الأثاث الشائعة

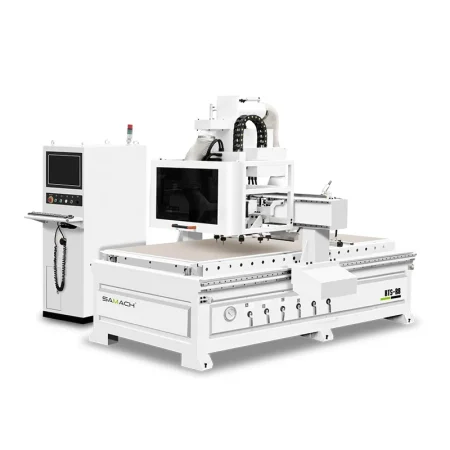

| Model | RTS-R8 | RTS-R16 |
| Work stroke | 1300*5000*50mm | 1300*5000*50mm |
| Spindle Brand | HQD 9KW | HQD 9KW |
| Spindle Speed | 18000r/min | 18000r/min |
| Drive system | Japan Yaskawa 850W servo drive | Japan Yaskawa 850W servo drive |
| Inverter | Fulling 11KW | Fulling 11KW |
| Guide rail X/Y/X axis | 25mm | 25mm |
| Positioning cylinder X axis | 2sets | 4sets |
| Positioning bar Y axis | Installed in two sides of Y axis | Installed in two sides of Y axis |
| PVC vacuum adsorption | Total 6 areas, 2 holes in each area | Total 6 areas, 2 holes in each area |
| Vacuum Pump | Domestic water cycle 7.5kw | Domestic water cycle 7.5kw |
| Reducer | Helical gear reducer, 2m rack | Helical gear reducer, 2m rack |
| Max. Idling speed | X/Y axis: 75m/min, Z axis: 15m/min | X/Y axis: 75m/min, Z axis: 15m/min |
| Max. work speed | X/Y axis: 25m/min, Z axis: 10m/min | X/Y axis: 25m/min, Z axis: 10m/min |
| Total power | 25KW | 28KW |
| Work voltage | 380V 50HZ 3P | 380V 50HZ 3P |
| Operation instruction | G-code, *.NC | G-code, *.NC |
| Operation system | SYNTEC FC computer control system (display monitor and handwheel) Other control system is optional |
SYNTEC FC computer control system (display monitor and handwheel) Other control system is optional |
